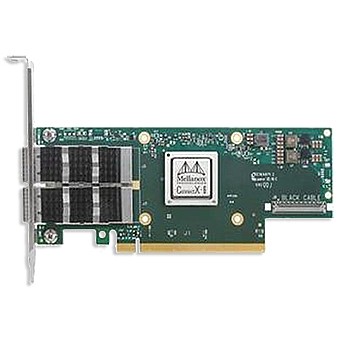

כרטיס תקשורת מלאנוקס Mellanox MCX653106A-ECAT Network Adapter
יצרן מלאנוקס
דגם MCX653106A-ECAT
ConnectX-6 adapters
Mellanox MCX653106A-ECAT-SP (Single Pack) ConnectX-6 VPI Adapter Card HDR100 EDR IB and 100GbE Dual-Port QSFP56 PCIe3.0/4.0 x16 Tall Bracket
Mellanox MCX653106A-ECAT-SP (Single Pack MCX653106A-ECAT for distribution.) ConnectX-6 VPI Adapter Card HDR100 EDR IB and 100GbE Dual-Port QSFP56 PCIe3.0/4.0 x16 Tall Bracket.
-
מקט: 685906
-
זמן אספקה לאחר אישור הזמנה: עד5ימי עסקים
-
קישור לאתר יצרן: Mellanox
-
אחריות: 12 חודשים
מחיר ₪ 4,945
כרטיס תקשורת מלאנוקס
Mellanox MCX653106A-ECAT Network Adapter
| Physical | Adapter Card Size: 6.6 in. x 2.71 in. (167.65mm x 68.90mm) | |||
| Connector: Dual QSFP56 InfiniBand and Ethernet (copper and optical) | ||||
| Protocol Support | InfiniBand: IBTA v1.4a | |||
| Auto-Negotiation: 1X/2X/4X SDR (2.5Gb/s per lane), DDR (5Gb/s per lane), QDR (10Gb/s per lane), FDR10 (10.3125Gb/s per lane), FDR (14.0625Gb/s per lane), EDR (25Gb/s per lane) port, HDR100 (2 lane x 50Gb/s per lane) port | ||||
| Ethernet: 100GBASE-CR4, 100GBASE-KR4, 100GBASE-SR4, 50GBASE-R2, 50GBASE-R4, 40GBASE-CR4, 40GBASE-KR4, 40GBASE-SR4, 40GBASE-LR4, 40GBASE-ER4, 40GBASE-R2, 25GBASE-R, 20GBASE-KR2, 10GBASE-LR,10GBASE-ER, 10GBASE-CX4, 10GBASE-CR, 10GBASE-KR, SGMII, 1000BASE-CX, 1000BASE-KX, 10GBASE-SR | ||||
| Data Rate | InfiniBand | SDR/DDR/QDR/FDR/EDR | ||
| Ethernet | 1/10/25/40/50/100 Gb/s | |||
| Gen3/4: SERDES @ 8.0GT/s/16GT/s, x16 lanes (2.0 and 1.1 compatible) | ||||
| Power and Airflow | Voltage: 12V, 3.3VAUX | |||
| Maximum current: 100mA | ||||
| Power | Cable | |||
| Typical Powerb | Passive Cables | 21.0W | ||
| Maximum Power | Please refer to ConnectX-6 VPI Power Specifications (requires NVONline login credentials) | |||
| Maximum power available through QSFP56 port: 5W | ||||
| Airflow (LFM) / | Cable Type | Airflow Direction | ||
| Ambient Temperature | Heatsink to Port | Port to Heatsink | ||
| Passive Cables | 350 LFM / 55°C | 250 LFM / 35°C | ||
| NVIDIA Active 2.7W Cables | 550 LFM / 55°C | 250 LFM / 35°C | ||
| Environmental | Temperature | Operational | 0°C to 55°C | |
| Non-operational | -40°C to 70°Cc | |||
| Humidity | Operational | 10% to 85% relative humidity | ||
| Non-operational | 10% to 90% relative humidity | |||
| Altitude (Operational) | 3050m | |||
| Regulatory | Safety: CB / cTUVus / CE | |||
| EMC: CE / FCC / VCCI / ICES / RCM / KC | ||||
| RoHS: RoHS Compliant | ||||
Notes: a. The ConnectX-6 adapters supplement the IBTA auto-negotiation specification to get better bit error rates and longer cable reaches. This supplemental feature only initiates when connected to another NVIDIA InfiniBand product.
b. Typical power for ATIS traffic load.
c. The non-operational storage temperature specifications apply to the product without its package.
