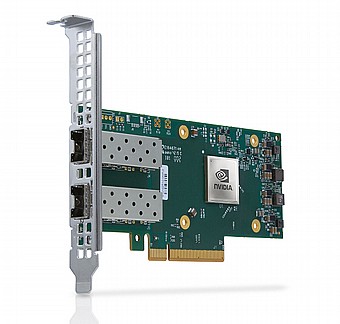

כרטיס מלאנוקס Mellanox MCX621102AN-ADAT ConnectX-6
יצרן מלאנוקס
Mellanox MCX621102AN-ADAT ConnectX-6 Dx EN Adapter Card 25GbE Dual-port SFP28 PCIe 4.0 x8 (No Crypto) and Secure Boot Tall Bracket
NVIDIA CONNECTX-6 DX, Ethernet SmartNIC
PCIe x16 HHHL Card
-
מקט: 68590
-
זמן אספקה לאחר אישור הזמנה: עד5ימי עסקים
-
קישור לאתר יצרן: Mellanox
-
אחריות: 24 חודשים
מבצע ₪ 2,350
MCX621102AC-ADAT / MCX621102AN-ADAT / MCX621102AN-ADAT Specifications
| Physical |
Size: 4.89in. x 2.71in (124.22mm x 68.90mm) |
|||
|---|---|---|---|---|
| Connector: Dual SFP28 Ethernet (copper and optical) | ||||
| Protocol Support | Data Rate: | Ethernet | 1/10/25 Gb/s | |
|
Ethernet: 25GBASE-R, 20GBASE-KR2, 10GBASE-LR,10GBASE-ER, 10GBASE-CX4, 10GBASE-CR, 10GBASE-KR, SGMII, 1000BASE-CX, 1000BASE-KX, 10GBASE-SR |
||||
| PCI Express Gen 3.0/4.0: SERDES @ 16.0GT/s, 8 lanes (2.0 and 1.1 compatible) | ||||
|
Power Specifications(a) |
Voltage: 12V |
|||
| Power | Cable | PCIe Gen 3.0 | PCIe Gen 4.0 | |
|
Typical Power(b) |
Passive Cables | 10.88W | 11.29W | |
| Maximum Power | Passive Cables | 15.55W | 15.96W | |
|
Maximum power available through SFP28 port: 1.5W (per port) |
||||
| Voltage: 3.3Aux Maximum current: 100mA |
||||
| Environmental
|
Temperature | Operational | 0°C to 55°C | |
| Non-operational | -40°C to 70°C | |||
| Humidity | 90% relative humidity(c) | |||
| Altitude (Operational) | 3050m | |||
|
Airflow Requirements @ 55C(d)(e) | Cable Type | Hot Aisle - Heatsink to Port | ||
| Passive Cable |
200LFM |
|||
| Active 0.8W Cable | 400 LFM | |||
| Active 1.5W Cable | 450LFM | |||
| Regulatory | Safety |
CB / cTUVus / CE |
||
| EMC | CE / FCC / VCCI / ICES / RCM | |||
| RoHS | RoHS compliant |
|||
