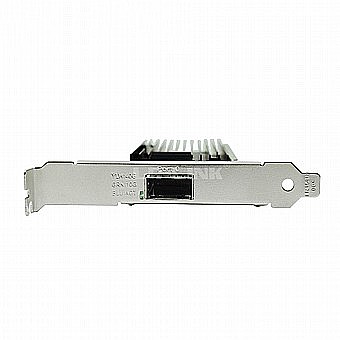

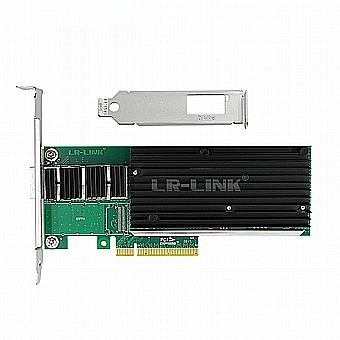

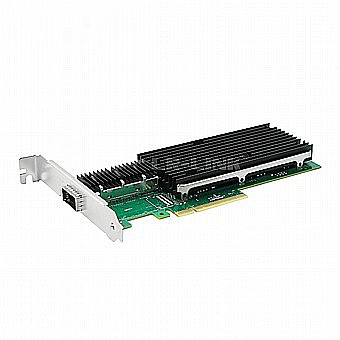

ëøèéñ øùú ôðéîé +LR-LINK LREC9901BF-QSFP
:Key Features
Single-port/Dual-port 40Gigabit network adapter
PCI Express (PCIe) 3.0, 8.0 GT/s, x8 lanes
QSFP+ Connectivity
Network Virtualization
DCB/DCB-X support
Message Signal Interrupts MSI-X
Receive Side Scaling RSS
Large Send Offload LSO
Low Profile and Full Height Bracket
** àéñåó òöîé áúàåí îøàù *** éùìç áàåúå éåí òñ÷éí àå áæä ùàçøéå
-
î÷è: 68538
-
æîï àñô÷ä ìàçø àéùåø äæîðä: òã5éîé òñ÷éí
-
÷éùåø ìàúø éöøï: LR-LINK
-
àçøéåú: 36 çåãùéí
LREC9901BF-QSFP+ is a PCIe x8 40Gbps Single-Port Fiber Sever Ethernet Adapter based on Intel XL710 chipset, and is compatible with PCIe x16 slot. In addition to managing MAC and PHY Ethernet layer functions, the controller manages PCI Express packet traffic across its transaction, link, and physical/logical layers. Using hardware acceleration, the controller offloads tasks from the host, such as TCP/UDP/IP checksum calculations and TCP segmentation.
The product of this seris is the ideal solution for implementing multiple network segments, mission-critical high-powered networking applications and environments within high performance servers.
|
Controller |
Intel XL710 |
|
Transmission rate per port |
40 Gigabit |
|
Network Standard Physical Layer Interfaces |
40GBASE-SR4/LR4 |
|
40GbE QSFP+ AOC/DAC |
|
|
Jumbo Frame Support |
Up to 9.5 KB |
|
Operating Temperature |
0 °C to 55 °C (32 °F to 131 °F) |
|
Network Virtualization |
VXLAN, MACinUDP, NVGRE, IPinGRE |
|
LED Indicators OPERATION |
40Gbps:Yellow LINK on; Blue ACTblink |
|
Operating System Support |
Windows Server2016 R2/2016/2012 R2/2012/2008 R2/2008 |
|
Windows 7/8/8.1/10 |
|
|
Linux Stable Kernel version 2.4.x / 2.6.x / 3.x / 4.x or later |
|
|
VMware6.x |
LREC9901BF-QSFP+ is a PCIe x8 40Gbps Single-Port Fiber Sever Ethernet Adapter based on Intel XL710 chipset, and is compatible with PCIe x16 slot. In addition to managing MAC and PHY Ethernet layer functions, the controller manages PCI Express packet traffic across its transaction, link, and physical/logical layers. Using hardware acceleration, the controller offloads tasks from the host, such as TCP/UDP/IP checksum calculations and TCP segmentation.
The product of this seris is the ideal solution for implementing multiple network segments, mission-critical high-powered networking applications and environments within high performance servers.
|
Controller |
Intel XL710 |
|
Transmission rate per port |
40 Gigabit |
|
Network Standard Physical Layer Interfaces |
40GBASE-SR4/LR4 |
|
40GbE QSFP+ AOC/DAC |
|
|
Jumbo Frame Support |
Up to 9.5 KB |
|
Operating Temperature |
0 °C to 55 °C (32 °F to 131 °F) |
|
Network Virtualization |
VXLAN, MACinUDP, NVGRE, IPinGRE |
|
LED Indicators OPERATION |
40Gbps:Yellow LINK on; Blue ACTblink |
|
Operating System Support |
Windows Server2016 R2/2016/2012 R2/2012/2008 R2/2008 |
|
Windows 7/8/8.1/10 |
|
|
Linux Stable Kernel version 2.4.x / 2.6.x / 3.x / 4.x or later |
|
|
VMware6.x |
