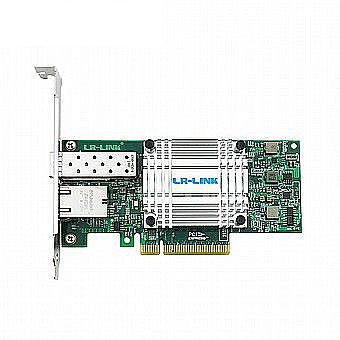

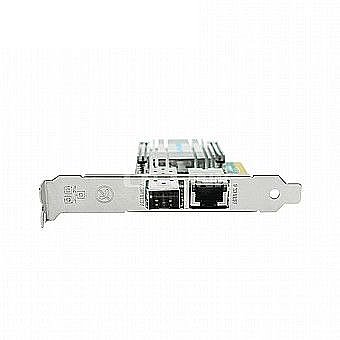

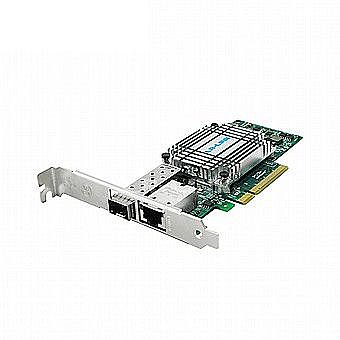

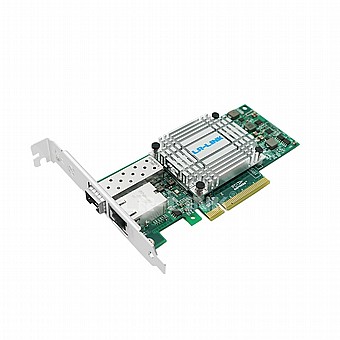

ëøèéñ øùú ôðéîé LR-LINK LRES4001PT-PF
-
î÷è: 68550
-
æîï àñô÷ä ìàçø àéùåø äæîðä: òã5éîé òñ÷éí
-
÷éùåø ìàúø éöøï: LR-LINK
-
àçøéåú: 24 çåãùéí
îçéø ¤ 1,099
LR-LINK LRES4001PT-PF - ëøèéñ øùú 10 â'éâä òí àôùøåéåú çéáåø îú÷ãîåú
- ùìåùä áîëùéø àçã: ëøèéñ øùú 10 â'éâä äëåìì ôåøè SFP+ àçã, ôåøè RJ45 àçã, åîîéø îãéä àåôèéú – ëì àçã îäí éëåì ìôòåì áðôøã àå áå æîðéú.
- áéöåòéí âáåäéí: îáåññ òì á÷ø Intel 82599, úåîê áèëðåìåâéåú åéøèåàìéæöéä îú÷ãîåú åùéôåø áéöåòéí áñáéáåú åéøèåàìéåú.
- çéáåøé 10 â'éâä àåôèééí: àôùøåú çéáåø ñéá àåôèé SFP+ àå çéáåø RJ45 ìçéáåø ìøùúåú îáåññåú ëáìéí ÷ééîéí.
- úîéëä áèëðåìåâéåú îú÷ãîåú: òí èëðåìåâéåú ëîå Intel VT-c, Load Balancing å- VMDq, äëøèéñ îñô÷ àåôèéîéæöéä ìáéöåòéí, äôçúú òåîñ òì ä-CPU åééòåì ôòåìúå áñáéáåú îøåáåú îëåðåú åéøèåàìéåú.
- âîéùåú îøáéú: ëøèéñ æä îöéò ùìåùä îöáéí ùåðéí ùì ôòåìä: çéáåø ì-10G áøùú RJ45, çéáåø ìøùú àåôèéú SFP+, àå äîøú îãéä áéï RJ45 ì-SFP+.
ìîä ì÷ðåú?
ëøèéñ øùú òí ùéìåá çéáåøéí åâîéùåú îøáéú, àéãéàìé ìîøëæé ðúåðéí åùøúé áéöåòéí âáåäéí. òí éëåìåú åéøèåàìéæöéä îú÷ãîåú, èòéðú òáåãä îùåúôú åäôçúú òéëåáéí, îãåáø áôúøåï îöåéï ìùãøåâ äøùú ùìê.
|
Controller |
Intel(R) 82599 |
|
Transmission Medium |
10G SFP+ DAC/AOC /UTP |
|
Fiber Type |
10GBASE-SR, 10GBASE-LR, 10GBASE-T |
|
Bracket |
Low Profile Bracekt and Full-height Bracket |
|
Power Dissipation (MAX) |
10G Single RJ45 Port Mode: 10.12W 10G Single SFP+ Port Mode: 6.73W 10G Fiber Media Converter Mode: 10.12W |
|
Operating Mode |
1.10G Single RJ45 Port Mode (When only connect the RJ45 port) 2. 10G Single SFP+ Port Mode(When only connecting SFP+ Fiber port) 3. 10G Fiber Media Converter Mode (When RJ45 and SFP+ are both connected) |
|
Operating system support |
Windows 7 |
|
Windows Vista |
|
|
Windows 8/8.1 |
|
|
Windows 10 |
|
|
Windows Server 2003 /2003 R2 |
|
|
Windows Server 2008 /2008 R2 |
|
|
Windows Server 2012 /2012 R2 |
|
|
Windows Server 2016 /2016 R2 |
|
|
Linux Stable Kernel version 2.4.x/2.6.x/3.x/4.x or later |
|
|
SUSE Linux Enterprise Server 10/11 or later |
|
|
FreeBSD 9/10/11 or later |
|
|
Red Hat Enterprise Linux* 5/6/7 or later |
|
|
VMware ESX/ESXi 5.x/6.x or later |
|
|
Connector |
10G SFP+*1 & 10G RJ45*1 |
|
PCIe Bus |
PCI Express v2.0 (5.0GT/s) x8, Compatible with x16 |
|
Data Rate Per Port |
10000Mbps |
|
Technical Parameters |
|
|
IEEE Standard / Network topology |
IEEE 802.3ae 10 Gigabit Ethernet IEEE 802.3an 10GBASE-T IEEE 802.3az Energy Efficient Ethernet IEEE 802.3ap IEEE 802.1Q VLAN IEEE 1588 802.1as IEEE 802.3ad IEEE 802.1p |
|
PXE Support |
Yes |
|
Jumbo frame Support |
Yes |
|
DPDK Support |
Yes |
|
iSCSI Support |
Yes |
|
SR-IOV Support |
Yes |
|
WOL Support |
No |
|
Environmental Parameters |
|
|
Operating Temperature |
0 ℃ to 55 ℃ (32 ℉ to 131 ℉) |
|
Storage Temperature |
-40 ℃ to 70 ℃ (-40 ℉ to 158 ℉) |
|
Storage humidity |
35% to 90%, non condensing |
|
Certificates |
FCC,CE,Rohs |
|
LED Indicators |
|
|
LED Indicators |
Link Green + Green blinking |
|
Physical Features |
|
|
PCB Dimension(mm) |
143*67*1.6 |
|
Weight (g) |
106 |
|
Packing Details |
|
|
Package Dimension(mm) |
224*147*30 |
|
2U bracket |
*1 |
|
Installation Guide |
*1 |
|
Warranty Card |
*1 |
|
Gross Weight (g) |
223 |
