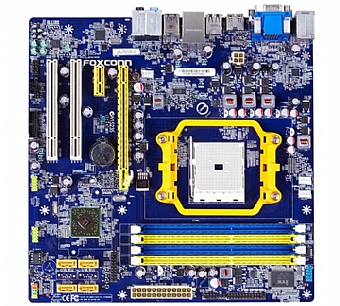

לוח אם A75M
לוח אם A75M
יצרן: Foxconn
יצרן: Foxconn
-
מקט: 71615
-
זמן אספקה לאחר אישור הזמנה: עד5ימי עסקים
-
קישור לאתר יצרן: Foxconn
-
אחריות: 12 חודשים
מחיר ₪ 430
| Processor | AMD FM1 socket CPU , Quad-Core CPU; Up to 4 "Husky" CPU Cores |
| Chipset | AMD A75 FCH ( Hudson D3) Chipset |
| Front Side Bus | |
| Memory | Dual channel DDR3 1866/1600/1333 x 4 DIMMs, Max. 64GB |
| VGA on Die | |
| Expansion Slots | 1 x PCI Express x16 slot 1 x PCI Express x1 slot 2 x PCI bus slots |
| IDE | N/A |
| Serial ATA(SATA)/RAID | 6* SATAIII ,SATA RAID 0,1,10 |
| Audio | Supports 7.1 channel audio |
| LAN | Supports Gbe Lan |
| IEEE1394 | N/A |
| Back Panel I/O Ports | 1x PS/2 keyboard port 1x VGA port 1x DVI port 1x audio jack supports 6 jacks 1x HDMI port 6x USB 2.0 ports 2x USB 3.0 ports 1x RJ45 Lan port |
| Internal I/O Connectors | 1x ATX 24-Pin power connector 1x 4-pin ATX 12V power connector 3x 4-pin CPU / System Fan connector 1x CD-in connector 1x Speaker header 6x Serial ATA connectors 2x USB 2.0 headers 1x USB 3.0 headers 1x parallel header 1x Intrusion Alarm header 1x TPM/TCM header 1x Buzzer (reserved) 1x COM header 1x Front Panel header 1x S/PDIF out header(reserved) 1x Front Audio header 1x IR/CIR header (default IR) |
| BIOS Features | 16Mb flash EEPROM w/ LAN boot PnP, ACPI, WfM, DMI 2.0 |
| Support CD | Drivers, Adobe Reader, SuperUtilities, Norton Internet Security |
| Standards/Manageability | Supports up to 10 USB 2.0 ports+4USB 3.0 |
| Special Features | |
| Form Factor | mATX form factor 9.6x9.6 inch - 4 layers PCB |
| Processor | AMD FM1 socket CPU , Quad-Core CPU; Up to 4 "Husky" CPU Cores |
| Chipset | AMD A75 FCH ( Hudson D3) Chipset |
| Front Side Bus | |
| Memory | Dual channel DDR3 1866/1600/1333 x 4 DIMMs, Max. 64GB |
| VGA on Die | |
| Expansion Slots | 1 x PCI Express x16 slot 1 x PCI Express x1 slot 2 x PCI bus slots |
| IDE | N/A |
| Serial ATA(SATA)/RAID | 6* SATAIII ,SATA RAID 0,1,10 |
| Audio | Supports 7.1 channel audio |
| LAN | Supports Gbe Lan |
| IEEE1394 | N/A |
| Back Panel I/O Ports | 1x PS/2 keyboard port 1x VGA port 1x DVI port 1x audio jack supports 6 jacks 1x HDMI port 6x USB 2.0 ports 2x USB 3.0 ports 1x RJ45 Lan port |
| Internal I/O Connectors | 1x ATX 24-Pin power connector 1x 4-pin ATX 12V power connector 3x 4-pin CPU / System Fan connector 1x CD-in connector 1x Speaker header 6x Serial ATA connectors 2x USB 2.0 headers 1x USB 3.0 headers 1x parallel header 1x Intrusion Alarm header 1x TPM/TCM header 1x Buzzer (reserved) 1x COM header 1x Front Panel header 1x S/PDIF out header(reserved) 1x Front Audio header 1x IR/CIR header (default IR) |
| BIOS Features | 16Mb flash EEPROM w/ LAN boot PnP, ACPI, WfM, DMI 2.0 |
| Support CD | Drivers, Adobe Reader, SuperUtilities, Norton Internet Security |
| Standards/Manageability | Supports up to 10 USB 2.0 ports+4USB 3.0 |
| Special Features | |
| Form Factor | mATX form factor 9.6x9.6 inch - 4 layers PCB |
חזרו אלי בקשר למוצר זה
