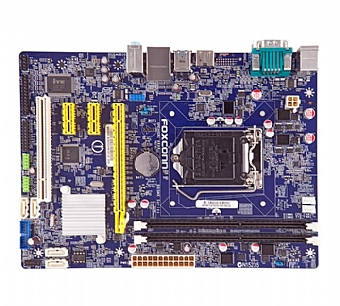

לוח אם B85 MX 1150
לוח אם B85 MX סוקט
-
מקט: 71612
-
זמן אספקה לאחר אישור הזמנה: עד5ימי עסקים
-
קישור לאתר יצרן: Foxconn
לרכישת מוצר זה התקשרו לקבלת פרטים
| Processor | Supports the Intel® 4th generation Core™ i7 / Core™ i5 / Core™ i3 processors with Socket 1150 Supports Intel 22nm Hi-K CPU Max 95w Notes:Please check our CPU compatibility table for full details |
| Chipset | Intel® B85 Chipset |
| Front Side Bus | |
| Memory | 2* dual-channel 1600MHz DDRIII slots, up to 32GB |
| VGA on Die | Intel® HD Graphics, support VGA,HDMI display interface |
| Expansion Slots | 1* PCIe 3.0 x16 slot 2* PCIe x1 slot 1* PCI bus slots |
| IDE | |
| Serial ATA(SATA)/RAID | 4* SATAIII |
| Audio | 5.1channel HD Audio |
| LAN | Realtek GigaLan |
| IEEE1394 | |
| Back Panel I/O Ports | 1x PS2 keyboard port 1x PS2 Mouse port 1x HDMI port 1x VGA port 1x Serial port 2x USB 2.0 ports 2x USB 3.0 ports 1x RJ45 port 1x 3-port audio jacks |
| Internal I/O Connectors | 1x ATX 24-Pin power conn 1x 4-pin ATX 12V power conn 1x 4-pin CPU FAN header 1x 4-pin System FAN header 1x Front pannel header 1x Front Audio header 1x Serial header 1x Parallel header 1x TPM header 4x SATA3 conn 2x USB2.0 headers 1x USB3.0 header 1x Intruder Alarm header 1x Speaker header 1x CLR_CMOS header |
| BIOS Features | 64Mb flash EEPROM w/ LAN boot PnP, ACPI, WfM, DMI 2.0 |
| Support CD | Drivers, Adobe Reader, SuperUtilities, Norton Internet Security |
| Standards/Manageability | |
| Special Features | |
| Form Factor | mATX form factor 9.6 inch x 7.0 inch |
| Processor | Supports the Intel® 4th generation Core™ i7 / Core™ i5 / Core™ i3 processors with Socket 1150 Supports Intel 22nm Hi-K CPU Max 95w Notes:Please check our CPU compatibility table for full details |
| Chipset | Intel® B85 Chipset |
| Front Side Bus | |
| Memory | 2* dual-channel 1600MHz DDRIII slots, up to 32GB |
| VGA on Die | Intel® HD Graphics, support VGA,HDMI display interface |
| Expansion Slots | 1* PCIe 3.0 x16 slot 2* PCIe x1 slot 1* PCI bus slots |
| IDE | |
| Serial ATA(SATA)/RAID | 4* SATAIII |
| Audio | 5.1channel HD Audio |
| LAN | Realtek GigaLan |
| IEEE1394 | |
| Back Panel I/O Ports | 1x PS2 keyboard port 1x PS2 Mouse port 1x HDMI port 1x VGA port 1x Serial port 2x USB 2.0 ports 2x USB 3.0 ports 1x RJ45 port 1x 3-port audio jacks |
| Internal I/O Connectors | 1x ATX 24-Pin power conn 1x 4-pin ATX 12V power conn 1x 4-pin CPU FAN header 1x 4-pin System FAN header 1x Front pannel header 1x Front Audio header 1x Serial header 1x Parallel header 1x TPM header 4x SATA3 conn 2x USB2.0 headers 1x USB3.0 header 1x Intruder Alarm header 1x Speaker header 1x CLR_CMOS header |
| BIOS Features | 64Mb flash EEPROM w/ LAN boot PnP, ACPI, WfM, DMI 2.0 |
| Support CD | Drivers, Adobe Reader, SuperUtilities, Norton Internet Security |
| Standards/Manageability | |
| Special Features | |
| Form Factor | mATX form factor 9.6 inch x 7.0 inch |
חזרו אלי בקשר למוצר זה
