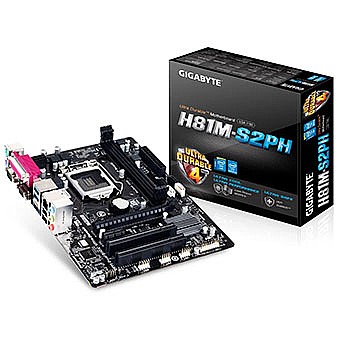

לוח אם GIGABYTE DDR3 GA-H81M-S2PH VGA/HDMI PCI 32 x2

לוח אם GIGABYTE DDR3 GA-H81M-S2PH VGA/HDMI PCI 32 x2

0  חוות דעת ( חוות דעת גולשים)
לוח אם של חברת Gigabyte
Supports 4th Generation Intel® Core™ processors
GIGABYTE Ultra Durable™ 4 Plus Technology
GIGABYTE UEFI DualBIOS™
USB 3.0 ports with GIGABYTE 3x USB power
GIGABYTE On/Off Charge™ for USB devices
LAN with high ESD Protection
HDMI, D-SUB, LPT, COM port on rear panel
  • מקט: 170551
  • אפשרויות משלוח:
    אפשרויות משלוח למוצר לבחירה בקופה:
    • איסוף עצמי מחולון 0 ₪
    • E-POST - איסוף מנקודת חלוקה 0 ₪
    • שליח עד לפתח הבית / העסק 39 ₪
    סגירה
  • זמן אספקה לאחר אישור הזמנה: עד5ימי עסקים
  • קישור לאתר יצרן:  GIGABYTE

מחיר   ₪ 425 ILS 10/7/2027 In stock GIGABYTE GA-H81M-S2PH GA-H81M-S2PH

לרכישת מוצר זה התקשרו לקבלת פרטים

לוח אם של חברת Gigabyte

1. Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1150 package
CPU
2. L3 cache varies with CPU
(Please refer "CPU Support List" for more information.)
1. Intel® H81 Express Chipset
Chipset
1. 2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory
Memory
* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
2. Dual channel memory architecture
3. Support for DDR3 1600/1333 MHz memory modules
4. Support for non-ECC memory modules
5. Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
Integrated Graphics Processor - Intel® HD Graphics support:
Onboard Graphics
1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200
2. 1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
* Support for HDMI 1.4a version.
3. Maximum shared memory of 1 GB
1. Realtek® ALC887 codec
Audio
2. High Definition Audio
3. 2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
4. Support for S/PDIF Out
1. Realtek® GbE LAN chip (10/100/1000 Mbit)
LAN
1. 1 x PCI Express x16 slot, running at x16
Expansion Slots
2. 1 x PCI Express x1 slot
(The PCI Express slots conform to PCI Express 2.0 standard.)
3. 2 x PCI slots
Chipset:

1. 2 x SATA 6Gb/s connectors (SATA3 0/1) supporting up to 2 SATA 6Gb/s devices
Storage Interface
2. 2 x SATA 3Gb/s connectors (SATA2 2/3) supporting up to 2 SATA 3Gb/s devices
Chipset:
USB
1. Up to 2 USB 3.0/2.0 ports on the back panel
2. Up to 6 USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
1. 1 x 24-pin ATX main power connector
Internal I/O Connectors
2. 1 x 8-pin ATX 12V power connector
3. 2 x SATA 6Gb/s connectors
4. 2 x SATA 3Gb/s connectors
5. 1 x CPU fan header
6. 1 x system fan header
7. 1 x front panel header
8. 1 x front panel audio header
9. 1 x S/PDIF Out header
10. 2 x USB 2.0/1.1 header
11. 1 x serial port header
12. 1 x Clear CMOS jumper
1. 1 x PS/2 keyboard port
Back Panel Connectors
2. 1 x PS/2 mouse port
3. 1 x parallel port
4. 1 x serial port
5. 1 x D-Sub port
6. 1 x HDMI port
7. 2 x USB 3.0/2.0 ports
8. 2 x USB 2.0/1.1 ports
9. 1 x RJ-45 port
10. 3 x audio jacks (Line In, Line Out, Mic In)
1. iTE® I/O Controller Chip
I/O Controller
1. System voltage detection
H/W Monitoring
2. CPU/System temperature detection
3. CPU/System fan speed detection
4. CPU/System overheating warning
5. CPU/System fan fail warning
6. CPU/System fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.
1. 2 x 64 Mbit flash
BIOS
2. Use of licensed AMI EFI BIOS
3. Support for DualBIOS™
4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
1. Support for Q-Flash
Unique Features
2. Support for Xpress Install
3. Support for APP Center
* Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications.
@BIOS
EasyTune
EZ Setup
USB Blocker
4. Support for ON/OFF Charge
1. Norton® Internet Security (OEM version)
Bundled Software
1. Support for Windows 10/8.1/8/7
Operating System
1. Micro ATX Form Factor; 24.4cm x 18.0cm
Form Factor

לוח אם של חברת Gigabyte

1. Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1150 package
CPU
2. L3 cache varies with CPU
(Please refer "CPU Support List" for more information.)
1. Intel® H81 Express Chipset
Chipset
1. 2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory
Memory
* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
2. Dual channel memory architecture
3. Support for DDR3 1600/1333 MHz memory modules
4. Support for non-ECC memory modules
5. Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
Integrated Graphics Processor - Intel® HD Graphics support:
Onboard Graphics
1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200
2. 1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
* Support for HDMI 1.4a version.
3. Maximum shared memory of 1 GB
1. Realtek® ALC887 codec
Audio
2. High Definition Audio
3. 2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
4. Support for S/PDIF Out
1. Realtek® GbE LAN chip (10/100/1000 Mbit)
LAN
1. 1 x PCI Express x16 slot, running at x16
Expansion Slots
2. 1 x PCI Express x1 slot
(The PCI Express slots conform to PCI Express 2.0 standard.)
3. 2 x PCI slots
Chipset:

1. 2 x SATA 6Gb/s connectors (SATA3 0/1) supporting up to 2 SATA 6Gb/s devices
Storage Interface
2. 2 x SATA 3Gb/s connectors (SATA2 2/3) supporting up to 2 SATA 3Gb/s devices
Chipset:
USB
1. Up to 2 USB 3.0/2.0 ports on the back panel
2. Up to 6 USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
1. 1 x 24-pin ATX main power connector
Internal I/O Connectors
2. 1 x 8-pin ATX 12V power connector
3. 2 x SATA 6Gb/s connectors
4. 2 x SATA 3Gb/s connectors
5. 1 x CPU fan header
6. 1 x system fan header
7. 1 x front panel header
8. 1 x front panel audio header
9. 1 x S/PDIF Out header
10. 2 x USB 2.0/1.1 header
11. 1 x serial port header
12. 1 x Clear CMOS jumper
1. 1 x PS/2 keyboard port
Back Panel Connectors
2. 1 x PS/2 mouse port
3. 1 x parallel port
4. 1 x serial port
5. 1 x D-Sub port
6. 1 x HDMI port
7. 2 x USB 3.0/2.0 ports
8. 2 x USB 2.0/1.1 ports
9. 1 x RJ-45 port
10. 3 x audio jacks (Line In, Line Out, Mic In)
1. iTE® I/O Controller Chip
I/O Controller
1. System voltage detection
H/W Monitoring
2. CPU/System temperature detection
3. CPU/System fan speed detection
4. CPU/System overheating warning
5. CPU/System fan fail warning
6. CPU/System fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.
1. 2 x 64 Mbit flash
BIOS
2. Use of licensed AMI EFI BIOS
3. Support for DualBIOS™
4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
1. Support for Q-Flash
Unique Features
2. Support for Xpress Install
3. Support for APP Center
* Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications.
@BIOS
EasyTune
EZ Setup
USB Blocker
4. Support for ON/OFF Charge
1. Norton® Internet Security (OEM version)
Bundled Software
1. Support for Windows 10/8.1/8/7
Operating System
1. Micro ATX Form Factor; 24.4cm x 18.0cm
Form Factor
