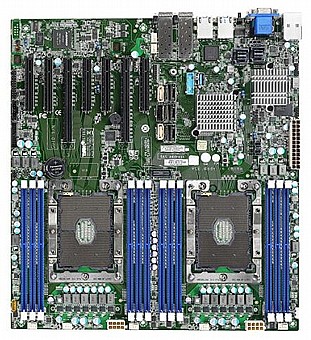

לוח אם לשרת TEMPEST CX S7103 - S7103GM2NR-2F-L2
** איסוף עצמי בתאום מראש
*** ישלח באותו יום עסקים או בזה שאחריו
-
מקט: 254089
-
זמן אספקה לאחר אישור הזמנה: עד5ימי עסקים
-
קישור לאתר יצרן: TYAN
-
אחריות: 24 חודשים
Low Cost 2P Rack Optimized Server Board
S7103GM2NR-2F-L2
-
Industry Standard 12" x 13" EATX Form Factor
-
Dual Socket 2nd Gen Xeon Scalable Processor Family
-
(12) DIMM slots supporting up to 1.5TB RAM
-
(7) PCIe slots, including (2) x16 + (5) x8 slots
-
AST2500 BMC with Redfish support
-
(2) 10GBase-SFP+ Ethernet Ports
-
(14) SATA 6G ports
-
NVDIMM Support
:Specifications
|
Processor |
Q'ty / Socket Type |
(2) LGA3647 |
|
|
Supported CPU Series |
Intel Xeon Scalable Processor / 2nd Gen Intel Xeon Scalable Processor |
||
|
Thermal Design Power (TDP) Wattage |
Max up to 205W |
||
|
System Bus |
Up to 10.4/9.6 GT/s with Intel UltraPath Interconnect (UPI) support |
||
|
Chipset |
PCH |
Intel C622 |
|
|
Memory |
Supported DIMM Qty |
(6)+(6) DIMM slots |
|
|
DIMM Type / Speed |
DDR4 RDIMM/RDIMM 3DS/LRDIMM/LRDIMM 3DS 2933/2666 / Intel Optane DC Persistent Memory Module (DCPMM) |
||
|
Capacity |
Up to 384GB RDIMM/ 768GB LRDIMM *Follow latest Intel DDR4 Memory POR |
||
|
Memory channel |
6 Channels per CPU |
||
|
Memory voltage |
1.2V |
||
|
Notification: |
DDR4-2933 speed only supported with 2nd Gen Intel Xeon Scalable Processor (codename: Cascade Lake) and in a 1 DIMM per channel configuration. / Intel Optane DC Persistent Memory Module (DCPMM) only supported with specific 2nd Gen Intel Xeon Scalable Processor (codename: Cascade Lake). Please contact Tyan Technical Support for more detail. |
||
|
Expansion Slots |
PCI-E |
(2) PCI-E Gen3 x16 slots / (5) PCI-E Gen3 x8 slots |
|
|
LAN |
Q'ty / Port |
(2) 10GbE ports, (1) GbE port dedicated for IPMI |
|
|
Controller |
Intel I350-AM2 / Intel C622 PCH |
||
|
PHY |
Realtek RTL8211E |
||
|
Storage |
SATA |
Connector |
(2) Mini-SAS (8-ports) |
|
Controller |
Intel C622 |
||
|
Speed |
6Gb/s |
||
|
RAID |
RAID 0/1/10/5 (Intel RSTe) |
||
|
sSATA |
Connector |
(1) Mini-SAS (4-ports) / (2) SATA-DOM |
|
|
Controller |
Intel C622 |
||
|
Speed |
6Gb/s |
||
|
RAID |
RAID 0/1/10/5 (Intel RSTe) |
||
|
Graphic |
Connector type |
D-Sub 15-pin |
|
|
Resolution |
Up to 1920x1200 |
||
|
Chipset |
Aspeed AST2500 |
||
|
Input /Output |
Others |
(1) ID button |
|
|
USB |
(2) USB3.0 ports (via cable) / (2) USB3.0 ports (at rear) / (1) Type-A USB3.0 port |
||
|
COM |
(1) DB-9 COM Connector |
||
|
VGA |
(1) D-Sub 15-pin VGA port (at rear) |
||
|
RJ-45 |
(1) GbE port dedicated for IPMI |
||
|
Front Panel |
(1) 2x12-pin SSI front panel header |
||
|
SATA |
(2) SATA/SATA-DOM connectors + (3) Mini-SAS (4-in-1) connectors |
||
|
Power |
SSI/ATX 24-pin + 8-pin power connectors |
||
|
SFP+ |
(2) 10GbE ports |
||
|
TPM (Optional) |
TPM Support |
Please refer to our TPM supported list. |
|
|
System Monitoring |
Chipset |
Aspeed AST2500 |
|
|
Fan |
Total (1) 2 x 10-pin headers |
||
|
Temperature |
Monitors temperature for CPU & memory & system environment |
||
|
Voltage |
Monitors voltage for CPU, memory, chipset & power supply |
||
|
LED |
Over temperature warning indicator / Fan & PSU fail LED indicator |
||
|
Others |
Watchdog timer support |
||
|
Server Management |
AST2500 iKVM Feature |
24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub |
|
|
AST2500 IPMI Feature |
IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface |
||
|
BIOS |
Brand / ROM size |
AMI / 32MB |
|
|
Feature |
Hardware Monitor / ACPI 5.0 / SMBIOS 3.0/PnP/Wake on LAN / Boot from USB device/PXE via LAN/Storage / User Configurable FAN PWM Duty Cycle / Console Redirection / ACPI sleeping states S0,S1,S5 |
||
|
Physical Dimension |
Form Factor |
EATX |
|
|
Board Dimension |
12" x 13" (305 x 330mm) |
||
|
Regulation |
FCC (DoC) |
Class A |
|
|
CE (DoC) |
Class A |
||
|
Operating Environment |
Operating Temp. |
10° C ~ 35° C (50° F~ 95° F) |
|
|
Non-operating Temp. |
- 40° C ~ 70° C (-40° F ~ 158° F) |
||
|
In/Non-operating Humidity |
90%, non-condensing at 35° C |
||
|
RoHS |
RoHS 6/6 Compliant |
Yes |
|
|
Operating System |
OS supported list |
Please refer to our AVL support lists. |
|
|
Package Contains |
Motherboard |
(1) S7103 Motherboard |
|
|
Manual |
(1) Quick Installation Guide |
||
|
Installation CD |
(1) TYAN Device Driver CD |
||
|
I/O Shield |
(1) I/O Shield |
||
|
Cable |
SATA |
(2) SATA signal cables |
Low Cost 2P Rack Optimized Server Board
S7103GM2NR-2F-L2
-
Industry Standard 12" x 13" EATX Form Factor
-
Dual Socket 2nd Gen Xeon Scalable Processor Family
-
(12) DIMM slots supporting up to 1.5TB RAM
-
(7) PCIe slots, including (2) x16 + (5) x8 slots
-
AST2500 BMC with Redfish support
-
(2) 10GBase-SFP+ Ethernet Ports
-
(14) SATA 6G ports
-
NVDIMM Support
:Specifications
|
Processor |
Q'ty / Socket Type |
(2) LGA3647 |
|
|
Supported CPU Series |
Intel Xeon Scalable Processor / 2nd Gen Intel Xeon Scalable Processor |
||
|
Thermal Design Power (TDP) Wattage |
Max up to 205W |
||
|
System Bus |
Up to 10.4/9.6 GT/s with Intel UltraPath Interconnect (UPI) support |
||
|
Chipset |
PCH |
Intel C622 |
|
|
Memory |
Supported DIMM Qty |
(6)+(6) DIMM slots |
|
|
DIMM Type / Speed |
DDR4 RDIMM/RDIMM 3DS/LRDIMM/LRDIMM 3DS 2933/2666 / Intel Optane DC Persistent Memory Module (DCPMM) |
||
|
Capacity |
Up to 384GB RDIMM/ 768GB LRDIMM *Follow latest Intel DDR4 Memory POR |
||
|
Memory channel |
6 Channels per CPU |
||
|
Memory voltage |
1.2V |
||
|
Notification: |
DDR4-2933 speed only supported with 2nd Gen Intel Xeon Scalable Processor (codename: Cascade Lake) and in a 1 DIMM per channel configuration. / Intel Optane DC Persistent Memory Module (DCPMM) only supported with specific 2nd Gen Intel Xeon Scalable Processor (codename: Cascade Lake). Please contact Tyan Technical Support for more detail. |
||
|
Expansion Slots |
PCI-E |
(2) PCI-E Gen3 x16 slots / (5) PCI-E Gen3 x8 slots |
|
|
LAN |
Q'ty / Port |
(2) 10GbE ports, (1) GbE port dedicated for IPMI |
|
|
Controller |
Intel I350-AM2 / Intel C622 PCH |
||
|
PHY |
Realtek RTL8211E |
||
|
Storage |
SATA |
Connector |
(2) Mini-SAS (8-ports) |
|
Controller |
Intel C622 |
||
|
Speed |
6Gb/s |
||
|
RAID |
RAID 0/1/10/5 (Intel RSTe) |
||
|
sSATA |
Connector |
(1) Mini-SAS (4-ports) / (2) SATA-DOM |
|
|
Controller |
Intel C622 |
||
|
Speed |
6Gb/s |
||
|
RAID |
RAID 0/1/10/5 (Intel RSTe) |
||
|
Graphic |
Connector type |
D-Sub 15-pin |
|
|
Resolution |
Up to 1920x1200 |
||
|
Chipset |
Aspeed AST2500 |
||
|
Input /Output |
Others |
(1) ID button |
|
|
USB |
(2) USB3.0 ports (via cable) / (2) USB3.0 ports (at rear) / (1) Type-A USB3.0 port |
||
|
COM |
(1) DB-9 COM Connector |
||
|
VGA |
(1) D-Sub 15-pin VGA port (at rear) |
||
|
RJ-45 |
(1) GbE port dedicated for IPMI |
||
|
Front Panel |
(1) 2x12-pin SSI front panel header |
||
|
SATA |
(2) SATA/SATA-DOM connectors + (3) Mini-SAS (4-in-1) connectors |
||
|
Power |
SSI/ATX 24-pin + 8-pin power connectors |
||
|
SFP+ |
(2) 10GbE ports |
||
|
TPM (Optional) |
TPM Support |
Please refer to our TPM supported list. |
|
|
System Monitoring |
Chipset |
Aspeed AST2500 |
|
|
Fan |
Total (1) 2 x 10-pin headers |
||
|
Temperature |
Monitors temperature for CPU & memory & system environment |
||
|
Voltage |
Monitors voltage for CPU, memory, chipset & power supply |
||
|
LED |
Over temperature warning indicator / Fan & PSU fail LED indicator |
||
|
Others |
Watchdog timer support |
||
|
Server Management |
AST2500 iKVM Feature |
24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub |
|
|
AST2500 IPMI Feature |
IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface |
||
|
BIOS |
Brand / ROM size |
AMI / 32MB |
|
|
Feature |
Hardware Monitor / ACPI 5.0 / SMBIOS 3.0/PnP/Wake on LAN / Boot from USB device/PXE via LAN/Storage / User Configurable FAN PWM Duty Cycle / Console Redirection / ACPI sleeping states S0,S1,S5 |
||
|
Physical Dimension |
Form Factor |
EATX |
|
|
Board Dimension |
12" x 13" (305 x 330mm) |
||
|
Regulation |
FCC (DoC) |
Class A |
|
|
CE (DoC) |
Class A |
||
|
Operating Environment |
Operating Temp. |
10° C ~ 35° C (50° F~ 95° F) |
|
|
Non-operating Temp. |
- 40° C ~ 70° C (-40° F ~ 158° F) |
||
|
In/Non-operating Humidity |
90%, non-condensing at 35° C |
||
|
RoHS |
RoHS 6/6 Compliant |
Yes |
|
|
Operating System |
OS supported list |
Please refer to our AVL support lists. |
|
|
Package Contains |
Motherboard |
(1) S7103 Motherboard |
|
|
Manual |
(1) Quick Installation Guide |
||
|
Installation CD |
(1) TYAN Device Driver CD |
||
|
I/O Shield |
(1) I/O Shield |
||
|
Cable |
SATA |
(2) SATA signal cables |
