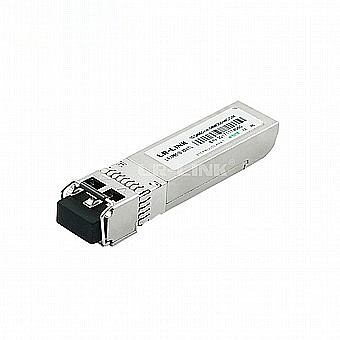

ג'יביק LR-LINK LRXP1310-20ATL GBIC
:Key Features
Up to 20km transmission distance
Support Multi Rate 9.95-10.5Gbps
1310nm DFB and PIN receiver
SFI electrical interface
2-wire interface for integrated Digital Diagnostic monitoring
SFP MSA package with duplex LC connector
Hot pluggable
Very low EMI and excellent ESD protection
+3.3V power supply
Power consumption less than 1W
Operating case temperature: 0~+70 centigrade
-
מקט: 68543
-
זמן אספקה לאחר אישור הזמנה: עד5ימי עסקים
-
קישור לאתר יצרן: LR-LINK
-
אחריות: 12 חודשים
LRXP1310-10ATL is a high performance, cost effective modules, which is supporting Multi Rate 9.95-10.5Gbps, and transmission distance up to 10km on SM fiber. The transceiver consists of two sections: The transmitter section incorporates a 1310nm DFB driver. The receiver section consists of a PIN photodiode integrated with a transimpedance preamplifier (TIA). The module is hot pluggable into the 20-pin connector. The high-speed electrical interface is base on low voltage logic, with nominal 100 Ohms differential impedance and AC coupled in the module.
The optical output can be disabled by LVTTL logic high-level input of TX_DIS. Transmit Fault (Tx_Fault) is provided to indicate that the module transmitter has detected a fault condition related to laser operation or safety. Loss of signal (RX_LOS) output is provided to indicate the loss of an input optical signal of receiver. A serial EEPROM in the transceiver allows the user to access transceiver monitoring and configuration data via the 2-wire SFP Management Interface. This interface uses a single address, A0h, with a memory map divided into a lower and upper area. Basic digital diagnostic (DD) data is held in the lower area while specific data is held in a series of tables in the high memory area.
Applications
High-speed storage area networks
Computer cluster cross-connect
Custom high-speed data pipes
LTE optical repeater application
Compliance
Compliant with IEEE 802.3ae-2002
Compliant with MSA SFF-8472
Compliant with MSA SFF-8431
LRXP1310-10ATL is a high performance, cost effective modules, which is supporting Multi Rate 9.95-10.5Gbps, and transmission distance up to 10km on SM fiber. The transceiver consists of two sections: The transmitter section incorporates a 1310nm DFB driver. The receiver section consists of a PIN photodiode integrated with a transimpedance preamplifier (TIA). The module is hot pluggable into the 20-pin connector. The high-speed electrical interface is base on low voltage logic, with nominal 100 Ohms differential impedance and AC coupled in the module.
The optical output can be disabled by LVTTL logic high-level input of TX_DIS. Transmit Fault (Tx_Fault) is provided to indicate that the module transmitter has detected a fault condition related to laser operation or safety. Loss of signal (RX_LOS) output is provided to indicate the loss of an input optical signal of receiver. A serial EEPROM in the transceiver allows the user to access transceiver monitoring and configuration data via the 2-wire SFP Management Interface. This interface uses a single address, A0h, with a memory map divided into a lower and upper area. Basic digital diagnostic (DD) data is held in the lower area while specific data is held in a series of tables in the high memory area.
Applications
High-speed storage area networks
Computer cluster cross-connect
Custom high-speed data pipes
LTE optical repeater application
Compliance
Compliant with IEEE 802.3ae-2002
Compliant with MSA SFF-8472
Compliant with MSA SFF-8431
