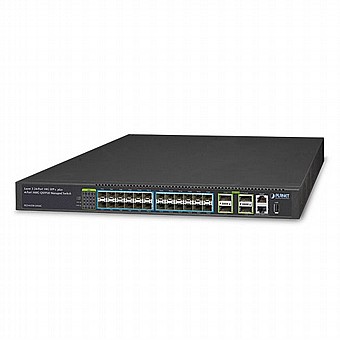

רכזת רשת 24+4 פורטים Planet Switch Layer 3 24-Port 10G SFP+ + 4-Port 100G QSFP28
24 פורטים 10GBASE-SR/LR SFP+ interfaces, בנוסף ל 4 פורטים QSFP28 Slots.
Planet Switch XGS-6350-24X4C
-
מקט: 68051
-
זמן אספקה לאחר אישור הזמנה: עד5ימי עסקים
-
קישור לאתר יצרן: PLANET
-
אחריות: 12 חודשים
Powerful 10Gbps Solution for All Long-Reach Networks
PLANET XGS-6350-12X8TR is a Layer 3 Managed Gigabit Switch that provides high-density performance by its Layer 3 10Gigabit routing with 12 SFP+ fiber interfaces and 8 Gigabit interfaces delivered in a rugged case. The administrator can flexibly choose the suitable SFP/SFP+ transceiver according to the transmission distance or the transmission speed required to extend the 10G network efficiently. Besides, with 256Gbps switching fabric, the XGS-6350-12X8TR can handle extremely large amounts of data in a secure topology linking to backbone or high capacity servers for enterprises, data centers, campuses and so on where VoIP, video streaming, and multicast applications are utilized.
| Hardware Specifications | |
|---|---|

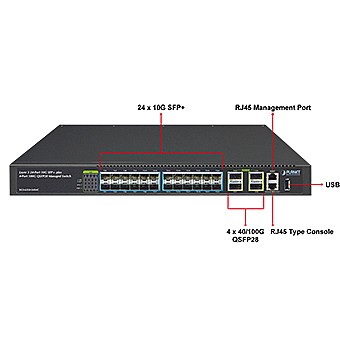

| QSFP28 Slots | 4, each supports native 100/40 Gigabit Ethernet and 4 x 10 Gigabit Ethernet modes |
| SFP+ Slots | 24 10GBASE-SR/LR SFP+ interfaces Compatible with 1000BASE-SX/LX/BX SFP transceiver |
| MGMT | 1 x 10/100/1000Base-T RJ45 port |
| Console | 1 x RJ45-to-DB9 serial port (9600, 8, N, 1) |
| USB | 1 x USB 2.0 |
| Switch Architecture | Store-and-forward |
| Switch Capacity | 800Gbps/non-blocking |
| Switch Throughput | 960Mpps |
| Address Table | 32K MAC address table with auto learning function |
| Shared Data Buffer | 4MB |
| Flow Control | Back pressure for half duplex IEEE 802.3x pause frame for full duplex |
| Jumbo Frame | 9KB |
| LED Indicator | System: PWR, SYS Ports: 40G/100G QSFP Port: LNK/ACT |
| Dimensions (W x D x H) | 442.5 x 364 x 44 mm, 1U height |
| Weight | 5990g |
| Power Consumption | 75 watts/210 BTU (maximum) |
| Power Requirements | AC 100~240V, 50/60Hz |
| Fan | 4 |
Powerful 10Gbps Solution for All Long-Reach Networks
PLANET XGS-6350-12X8TR is a Layer 3 Managed Gigabit Switch that provides high-density performance by its Layer 3 10Gigabit routing with 12 SFP+ fiber interfaces and 8 Gigabit interfaces delivered in a rugged case. The administrator can flexibly choose the suitable SFP/SFP+ transceiver according to the transmission distance or the transmission speed required to extend the 10G network efficiently. Besides, with 256Gbps switching fabric, the XGS-6350-12X8TR can handle extremely large amounts of data in a secure topology linking to backbone or high capacity servers for enterprises, data centers, campuses and so on where VoIP, video streaming, and multicast applications are utilized.
| Hardware Specifications | |
|---|---|
| QSFP28 Slots | 4, each supports native 100/40 Gigabit Ethernet and 4 x 10 Gigabit Ethernet modes |
| SFP+ Slots | 24 10GBASE-SR/LR SFP+ interfaces Compatible with 1000BASE-SX/LX/BX SFP transceiver |
| MGMT | 1 x 10/100/1000Base-T RJ45 port |
| Console | 1 x RJ45-to-DB9 serial port (9600, 8, N, 1) |
| USB | 1 x USB 2.0 |
| Switch Architecture | Store-and-forward |
| Switch Capacity | 800Gbps/non-blocking |
| Switch Throughput | 960Mpps |
| Address Table | 32K MAC address table with auto learning function |
| Shared Data Buffer | 4MB |
| Flow Control | Back pressure for half duplex IEEE 802.3x pause frame for full duplex |
| Jumbo Frame | 9KB |
| LED Indicator | System: PWR, SYS Ports: 40G/100G QSFP Port: LNK/ACT |
| Dimensions (W x D x H) | 442.5 x 364 x 44 mm, 1U height |
| Weight | 5990g |
| Power Consumption | 75 watts/210 BTU (maximum) |
| Power Requirements | AC 100~240V, 50/60Hz |
| Fan | 4 |
