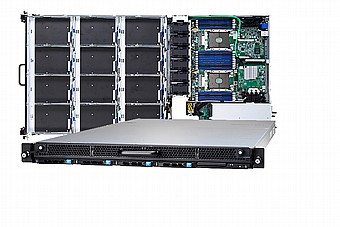

שרת אחסון 1U עם מגירת שירות Thunder SX GT90-B7113
שקע כפול, מעבד אינטל הניתן להרחבה

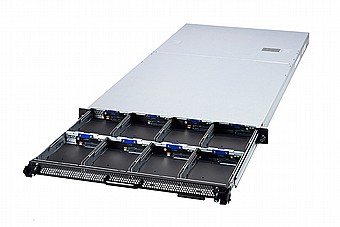

מפרצי HDD המותקנים במגירה לשירות קל
2x 3.5" SAS/SATA HDD Bays
4x 2.5" U.2 NVMe/SATA Bays
PCIe x16 OCP v2.0 Type-2 Quad-Port LAN Mezzanine
(1+1) 650W RPSU
**למחיר טוב יותר נא ליצור קשר**
מפרצי HDD המותקנים במגירה לשירות קל
2x 3.5" SAS/SATA HDD Bays
4x 2.5" U.2 NVMe/SATA Bays
PCIe x16 OCP v2.0 Type-2 Quad-Port LAN Mezzanine
(1+1) 650W RPSU
**למחיר טוב יותר נא ליצור קשר**
מחיר ₪ 45,000
| Form Factor | 1U Rackmount | ||
| Chassis Model | GT90 | ||
| Dimension (D x W x H) | 35.43" x 19.21" x 1.71" (900 x 448 x 43.5mm) | ||
| Motherboard Name | S7113GMRE # | ||
| Motherboard Notification | # The motherboard not sold separately | ||
| Gross Weight | 32 kg (70.5 lbs) | ||
| Net weight | 22 kg (48.5 lbs) | ||
| Front Panel | Buttons | (1) PWR w/ LED / (1) ID w/ LED | |
| LEDs | (1) HDD / (1) BMC event | ||
| External Drive Bay | Q'ty / Type | (12) 3.5" Hot-swap HDD + (4) 2.5" Hot-swap SATA SSD/NVMe (7mm) | |
| HDD Backplane Support | SAS 12Gb/s /SATA 6Gb/s / NVMe | ||
| Supported HDD Interface | (12) SATA 6Gb/s / SAS 12Gb/s + (4) SATA 6Gb/s / NVMe (7mm) | ||
| System Cooling Configuration | FAN | (6) 4cm fans | |
| Power Supply | Type | RPSU | |
| Input Range | AC 100-240V/8A | ||
| Frequency | 50-60 Hz | ||
| Output Watts | 650 Watts | ||
| Efficiency | 80 plus Platinum | ||
| Redundancy | 1+1 | ||
| Serviceability | Hot-swap | ||
| Processor | Q'ty / Socket Type | (2) LGA3647 | |
| Supported CPU Series | Intel Xeon Scalable Processor / 2nd Gen Intel Xeon Scalable Processor | ||
| Thermal Design Power (TDP) Wattage | Max up to 165W | ||
| System Bus | Up to 10.4/9.6 GT/s with Intel UltraPath Interconnect (UPI) support | ||
| Chipset | PCH | Intel C621 | |
| Memory | Supported DIMM Qty | (8)+(8) DIMM slots | |
| DIMM Type / Speed | DDR4 RDIMM/RDIMM 3DS/LRDIMM/LRDIMM 3DS 2933/2666 | ||
| Capacity | Up to 512GB RDIMM/ 1,024GB LRDIMM/ 768GB LRDIMM 3DS *Follow latest Intel DDR4 Memory POR | ||
| Memory channel | 6 Channels per CPU | ||
| Memory voltage | 1.2V | ||
| Notification | DDR4-2933 speed only supported with 2nd Gen Intel Xeon Scalable Processor (codename: Cascade Lake) and in a 1 DIMM per channel configuration. | ||
| Expansion Slots | Pre-installed TYAN Riser Card (PCI-E Gen3) |
(1) M7113-R8-1F # riser card for (1) PCI-E Gen3 x8 slot (right) | |
| Pre-installed TYAN Mezz. Card (PCI-E Gen3) |
(1) M7113-3416-16I # storage mezz. card w/ (16) SAS 12G ports (connected to M7113-R8-1F # riser card which deployed on the PCI-E Gen3 x8 storage mezz. slot) | ||
| Others | (1) PCI-E Gen3 x16 OCP 2.0 slot (conn.A+conn.B) / (1) PCI-E Gen3 x8 storage mezz. slot | ||
| Notification | # The item not sold separately | ||
| LAN | Q'ty / Port | (1) GbE dedicated for IPMI | |
| PHY | Realtek RTL8211E | ||
| Storage | SAS | Connector | (3) Slim SAS (12 ports) / (1) OCuLink (4 ports) |
| Controller | LSI SAS3416 IOC on (1) Tyan M7113-3416-16I Storage Mezz. Card | ||
| Speed | 12Gb/s | ||
| RAID | RAID 0/1/10 (LSI Integrated RAID) | ||
| sSATA | Connector | (1) SATA-DOM | |
| Controller | Intel C621 | ||
| Speed | 6Gb/s | ||
| RAID | RAID 0/1/10/5 (Intel RSTe) | ||
| NVMe | Connector (OCuLink) | (4) SFF-8654 for (4) NVMe ports | |
| Graphic | Connector type | D-Sub 15-pin | |
| Resolution | Up to 1920x1200 | ||
| Chipset | Aspeed AST2500 | ||
| I/O Ports | USB | (2) USB3.0 ports (@ rear) | |
| COM | (1) DB-9 COM port | ||
| VGA | (1) D-Sub 15-pin port | ||
| RJ-45 | (1) dedicated GbE for IPMI | ||
| TPM (Optional) | TPM Support | Please refer to our TPM supported list. | |
| System Monitoring | Chipset | Aspeed AST2500 | |
| Temperature | Monitors temperature for CPU & memory & system environment | ||
| Voltage | Monitors voltage for CPU, memory, chipset & power supply | ||
| LED | Over temperature warning indicator / Fan & PSU fail LED indicator | ||
| Others | Watchdog timer support | ||
| Server Management | Onboard Chipset | Onboard Aspeed AST2500 | |
| AST2500 iKVM Feature | 24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub | ||
| AST2500 IPMI Feature | IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface | ||
| BIOS | Brand / ROM size | AMI / 32MB | |
| Feature | Hardware Monitor / SMBIOS 3.0/PnP/Wake on LAN / Boot from USB device/PXE via LAN/Storage / Console Redirection / ACPI 6.1 / FAN speed control automatic / ACPI sleeping states S0,S4,S5 | ||
| Operating System | OS supported list | Please refer to our AVL support lists. | |
| Regulation | FCC (SDoC) | Class A | |
| CE (DoC) | Class A | ||
| CB/LVD | Yes | ||
| RCM | Class A | ||
| VCCI | Class A | ||
| Operating Environment | Operating Temp. | 10° C ~ 35° C (50° F~ 95° F) | |
| Non-operating Temp. | - 40° C ~ 70° C (-40° F ~ 158° F) | ||
| In/Non-operating Humidity | 90%, non-condensing at 35° C | ||
| RoHS | RoHS 6/6 Compliant | Yes | |
| Package Contains | Barebone | (1) GT90-B7113 Barebone | |
| Manual | (1) Quick Installation Guide |
| Form Factor | 1U Rackmount | ||
| Chassis Model | GT90 | ||
| Dimension (D x W x H) | 35.43" x 19.21" x 1.71" (900 x 448 x 43.5mm) | ||
| Motherboard Name | S7113GMRE # | ||
| Motherboard Notification | # The motherboard not sold separately | ||
| Gross Weight | 32 kg (70.5 lbs) | ||
| Net weight | 22 kg (48.5 lbs) | ||
| Front Panel | Buttons | (1) PWR w/ LED / (1) ID w/ LED | |
| LEDs | (1) HDD / (1) BMC event | ||
| External Drive Bay | Q'ty / Type | (12) 3.5" Hot-swap HDD + (4) 2.5" Hot-swap SATA SSD/NVMe (7mm) | |
| HDD Backplane Support | SAS 12Gb/s /SATA 6Gb/s / NVMe | ||
| Supported HDD Interface | (12) SATA 6Gb/s / SAS 12Gb/s + (4) SATA 6Gb/s / NVMe (7mm) | ||
| System Cooling Configuration | FAN | (6) 4cm fans | |
| Power Supply | Type | RPSU | |
| Input Range | AC 100-240V/8A | ||
| Frequency | 50-60 Hz | ||
| Output Watts | 650 Watts | ||
| Efficiency | 80 plus Platinum | ||
| Redundancy | 1+1 | ||
| Serviceability | Hot-swap | ||
| Processor | Q'ty / Socket Type | (2) LGA3647 | |
| Supported CPU Series | Intel Xeon Scalable Processor / 2nd Gen Intel Xeon Scalable Processor | ||
| Thermal Design Power (TDP) Wattage | Max up to 165W | ||
| System Bus | Up to 10.4/9.6 GT/s with Intel UltraPath Interconnect (UPI) support | ||
| Chipset | PCH | Intel C621 | |
| Memory | Supported DIMM Qty | (8)+(8) DIMM slots | |
| DIMM Type / Speed | DDR4 RDIMM/RDIMM 3DS/LRDIMM/LRDIMM 3DS 2933/2666 | ||
| Capacity | Up to 512GB RDIMM/ 1,024GB LRDIMM/ 768GB LRDIMM 3DS *Follow latest Intel DDR4 Memory POR | ||
| Memory channel | 6 Channels per CPU | ||
| Memory voltage | 1.2V | ||
| Notification | DDR4-2933 speed only supported with 2nd Gen Intel Xeon Scalable Processor (codename: Cascade Lake) and in a 1 DIMM per channel configuration. | ||
| Expansion Slots | Pre-installed TYAN Riser Card (PCI-E Gen3) |
(1) M7113-R8-1F # riser card for (1) PCI-E Gen3 x8 slot (right) | |
| Pre-installed TYAN Mezz. Card (PCI-E Gen3) |
(1) M7113-3416-16I # storage mezz. card w/ (16) SAS 12G ports (connected to M7113-R8-1F # riser card which deployed on the PCI-E Gen3 x8 storage mezz. slot) | ||
| Others | (1) PCI-E Gen3 x16 OCP 2.0 slot (conn.A+conn.B) / (1) PCI-E Gen3 x8 storage mezz. slot | ||
| Notification | # The item not sold separately | ||
| LAN | Q'ty / Port | (1) GbE dedicated for IPMI | |
| PHY | Realtek RTL8211E | ||
| Storage | SAS | Connector | (3) Slim SAS (12 ports) / (1) OCuLink (4 ports) |
| Controller | LSI SAS3416 IOC on (1) Tyan M7113-3416-16I Storage Mezz. Card | ||
| Speed | 12Gb/s | ||
| RAID | RAID 0/1/10 (LSI Integrated RAID) | ||
| sSATA | Connector | (1) SATA-DOM | |
| Controller | Intel C621 | ||
| Speed | 6Gb/s | ||
| RAID | RAID 0/1/10/5 (Intel RSTe) | ||
| NVMe | Connector (OCuLink) | (4) SFF-8654 for (4) NVMe ports | |
| Graphic | Connector type | D-Sub 15-pin | |
| Resolution | Up to 1920x1200 | ||
| Chipset | Aspeed AST2500 | ||
| I/O Ports | USB | (2) USB3.0 ports (@ rear) | |
| COM | (1) DB-9 COM port | ||
| VGA | (1) D-Sub 15-pin port | ||
| RJ-45 | (1) dedicated GbE for IPMI | ||
| TPM (Optional) | TPM Support | Please refer to our TPM supported list. | |
| System Monitoring | Chipset | Aspeed AST2500 | |
| Temperature | Monitors temperature for CPU & memory & system environment | ||
| Voltage | Monitors voltage for CPU, memory, chipset & power supply | ||
| LED | Over temperature warning indicator / Fan & PSU fail LED indicator | ||
| Others | Watchdog timer support | ||
| Server Management | Onboard Chipset | Onboard Aspeed AST2500 | |
| AST2500 iKVM Feature | 24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub | ||
| AST2500 IPMI Feature | IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface | ||
| BIOS | Brand / ROM size | AMI / 32MB | |
| Feature | Hardware Monitor / SMBIOS 3.0/PnP/Wake on LAN / Boot from USB device/PXE via LAN/Storage / Console Redirection / ACPI 6.1 / FAN speed control automatic / ACPI sleeping states S0,S4,S5 | ||
| Operating System | OS supported list | Please refer to our AVL support lists. | |
| Regulation | FCC (SDoC) | Class A | |
| CE (DoC) | Class A | ||
| CB/LVD | Yes | ||
| RCM | Class A | ||
| VCCI | Class A | ||
| Operating Environment | Operating Temp. | 10° C ~ 35° C (50° F~ 95° F) | |
| Non-operating Temp. | - 40° C ~ 70° C (-40° F ~ 158° F) | ||
| In/Non-operating Humidity | 90%, non-condensing at 35° C | ||
| RoHS | RoHS 6/6 Compliant | Yes | |
| Package Contains | Barebone | (1) GT90-B7113 Barebone | |
| Manual | (1) Quick Installation Guide |
